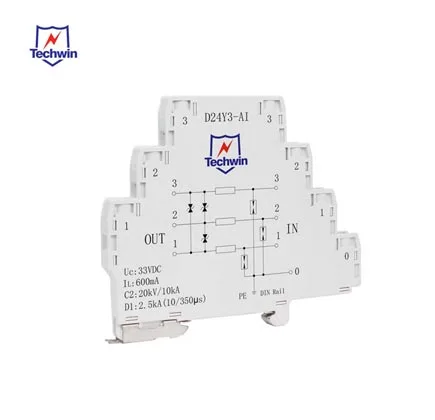

spd for industrial control signal system ds series1

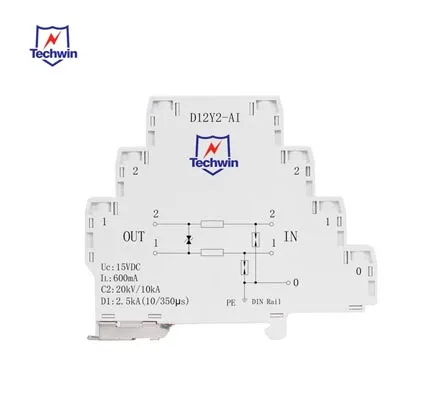

spd for industrial control signal system ds series2

spd for industrial control signal system ds series3

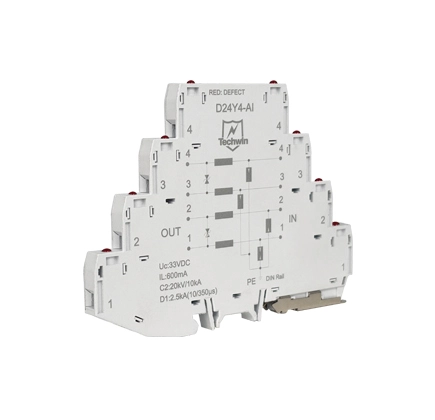

SPD for Industrial Control System DS series

Name: SPD for Industrial Control System DS series
Brand: Shenzhen Techwin Lightning Technologies Co., Ltd.

The product is mainly used for lightning protection of industrial control signal lines and is widely used in industrial control systems. The SPD is connected in series in the signal loop to prevent surges from invading equipment along the signal line and causing damage to the equipment. Suitable for intrinsically safe signal transmission systems with line-to-ground isolation. It can be applied to 0(4)~20mA, 0~10V analog and switch (digital) signal protection, and is suitable for 2-wire, 3-wire and 4-wire thermal resistors, thermocouples, RS-232, RS- 485, MODBUS, PROFIBUSDP, CAN, pressure transmitter, valve positioner, transmitter, frequency converter, electrical converter, flow meter, solenoid valve and other field instruments and control systems such as PLC, DCS's AI, AO, DI, Surge protection for I/O interfaces such as DO. Widely used in petroleum, chemical industry, natural gas, environmental protection, new energy and other industries.

GET A QUOTE

Features of SPD for Industrial Control System DS series

Suitable for 12/24V signal circuit requirements in intrinsically safe circuit systems and meets SIL certification product requirements
7/12.5mm ultra-thin design and compact appearance are particularly suitable for protecting signal lines of many automation systems in limited spaces, saving control cabinet space.
Comes with built-in guide rail grounding. When the SPD is snapped into the guide rail, a reliable connection with surge voltage resistance is automatically generated between the protection circuit and the installation guide rail. If a whole row of SPDs is provided with a ground connection, you only need to ground the installation rail, which is simple and convenient.
With multi-level surge protection function, it has strong current capacity, excellent transmission performance, convenient wiring and simple maintenance.
The card slot is designed to prevent misplugging and unplugging, and the 4-wire protection plug supports hot swapping.
The core components adopt internationally renowned brands, with excellent performance, small insertion loss, fast response time, and accurate limiting voltage.

Specification of SPD for Industrial Control System DS series

Model

AI: Anolog signal

DS12Y2

DS12Y3

DS12Y4

DS24Y2-AI

DS24Y3-AI

DS24Y4-AI

DS48Y2-AI

DS48Y3-AI

DS48Y4-AI

DI: Digital signal

DS24Y2-DI

DS24Y3-DI

DS24Y4-DI

DS48Y2-DI

DS48Y3-DI

DS48Y4-DI

Lightning projection zone(LPZ)

0-2

Standards Compliance

IEC61643-21

SPD category

D, T3/ C2

Norminal working voltage Un

12V

24V

48V

Max continuous operating voltage Uc

15V

33V

58V

Nominal discharge current (8/20µs) In

5KA

Max discharge current Imax (8/20µs) Imax

10KA

Lightning impulse current（10/350µs)） Iimp

2.5KA

Voltage proection level (8/200µs) Up

≤40V

≤60V

≤120V

Rated load current IL

600mA

Cut-off Frequency fG

20MHz

Series Impedance per line (Ohm)

1Ω

Response time tA

≤1ns

Lines protected

Mounting

Be Installed between protected equipment and signal line, 35mm DIN-rail mounting

Cross-section of connection wire

≤6mm²

Dimension

78.6*7*94mm

Joint form

Crimp type terminals

IP code(IEC EN 60529)

IP20

Largest terminal installation torque

0.6-0.8 N.m

Material/color

V0 PG66/ White

Insertion loss

≤0.5dB

Working conditions

Temperature: -40 to 85℃, Relative humidity: ≤95％

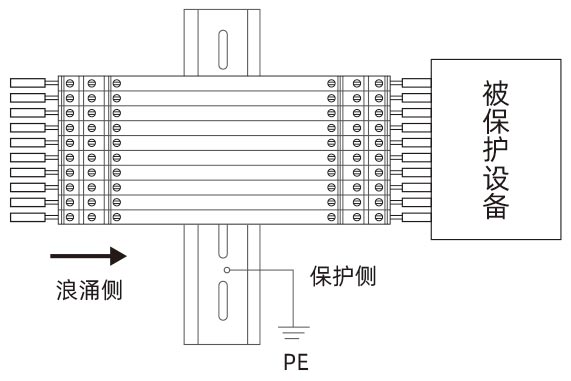

Installation And Wiring Diagram of SPD for Industrial Control System DS series

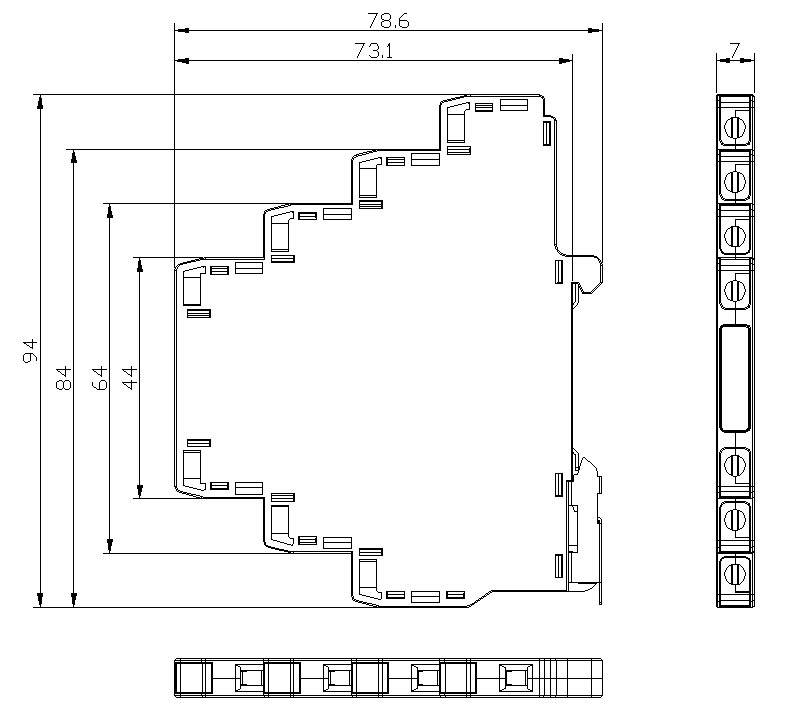

Dimension of SPD for Industrial Control System DS series
